Deformation Aluminium Extrusion Profile Corrector
Product Name:
Deformation Aluminium Extrusion Profile CorrectorModel No.:
Product Abstract:
Deformation Aluminum extrusion profile corrector is used for straightening and pressing the deformation aluminium profile after extrusion through the wheel pressure.
- Product Description
Deformation Aluminium Extrusion Profile Corrector

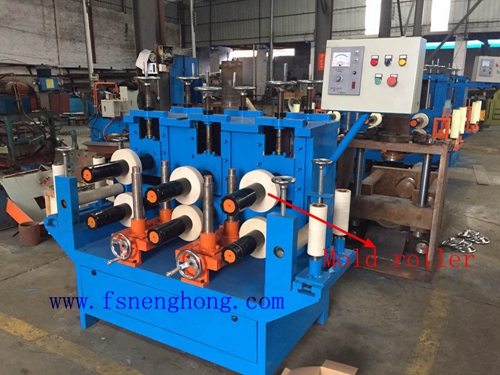

Deformation Aluminum extrusion profile corrector is used for straightening and correcting and pressing the distortion of the shapes of aluminum extrusion profile after extrusion through the wheel pressure. It can adjust the shape of aluminum profiles and increase the aluminum qualified rate.
In accordance with the requirement of aluminum profile, select the appropriate plastic wheels. The chain drives the plastic roller shaft. At the same time, regulate the working angle of roller shaft and the size of the pressure angle.Then implement the plastic of the aluminum profiles.
Features of deformation aluminium profile corrector: Simple Operation and high efficiency
Technical parameters of deformation aluminium profile corrector1. Plastic shaft diameter: ะค65mm
2. Working pattern: Lower shaft initiative, upper shaft passive
3. Adjustment type: No level adjustment
4. Feeding speed: 0-15m/min
5. Effective processing of dimensions: 450×350
6. Working voltage: 380V±10%
7. Total power: 1.5KW
8. Overall dimension: 1880mm×1000mm×1400mm (L×W×H)
Welcome to visit our video of aluminium profile corrector in running operation:
